Sprue grippers for injection molding
JF Angular finger grippers
JF angular finger grippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Finger gripper performance
| Model | Stroke (°) | Bore (mm) | Closing torque at 6 bar (Ncm) | Cycle air (cm³) | Weight (g) |
|---|---|---|---|---|---|
| JFA14-35 | 35 | 10 | 26 | 0.4 | 25 |
| JFA20-35 | 35 | 16 | 100 | 1.24 | 65 |
| JFA30-35 | 35 | 25 | 430 | 4.56 | 206 |
| JFR14-95 | 95 | 10 | 19 | 1 | 25 |
| JFR20-95 | 95 | 16 | 70 | 3.52 | 60 |
| JFR30-95 | 95 | 25 | 300 | 12.9 | 193 |
| JFR20-95L | 95 | 16 | 70 | 3.52 | 81.4 |
| JFR20-95LG | 95 | 16 | 70 | 3.52 | 104.8 |
| JFR20-95S | 95 | 16 | 70 | 3.52 | 89 |
| JFR20-95SG | 95 | 16 | 70 | 3.52 | 103 |
| JFS14-90G | 95 | 10 | 19 | 1 | 34 |
| JFS20-90G | 95 | 16 | 70 | 3.52 | 83 |
| JFS30-90G | 95 | 25 | 300 | 12.9 | 296 |
| JFS20-90SG | 95 | 16 | 70 | 3.52 | 99 |
| JFS30-90SG | 95 | 25 | 300 | 12.9 | 312 |
Single acting, aluminum body, built-in magnetic ring. Filtered lubricated or unlubricated compressed air; pressure 2.5–8 bar; temperature −10–70 °C.
JFA dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JFA14-35 | 14 | 14 | 10.5 | 49.5 | 5.5 | 13.5 | 4.5 | 74 | Ø14 | 12 | M5 | M12×1 |
| JFA20-35 | 20 | 20.5 | 9 | 76.5 | 8 | 20.2 | 6 | 106 | Ø20 | 17 | M5 | M17×1 |
| JFA30-35 | 30 | 30 | 12 | 111 | 11 | 30.5 | 8 | 153 | Ø30 | 27 | — | M27×1 |

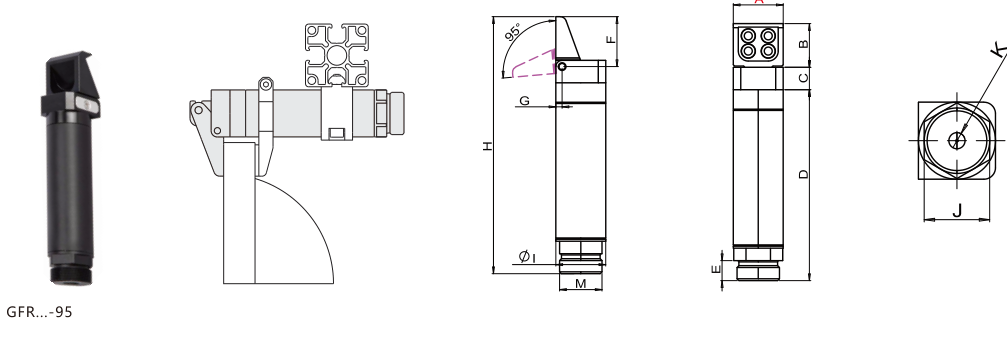

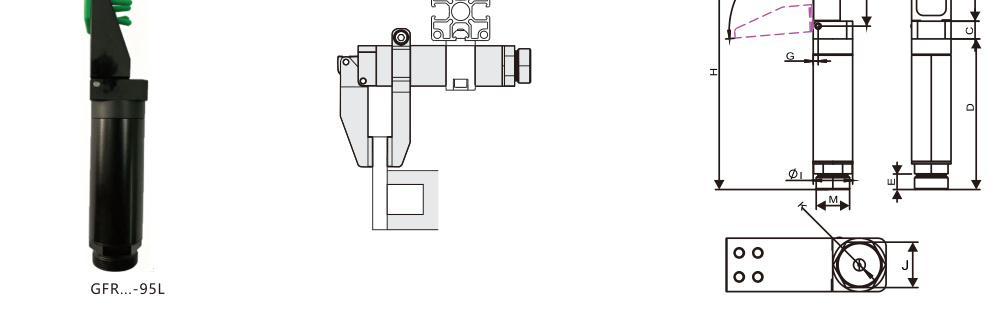

JFR dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JFR14-95 | 14 | 12 | 10.5 | 49.5 | 5.5 | 14 | 2 | 72 | Ø14 | 12 | M5 | M12×1 |
| JFR20-95 | 20 | 17.5 | 9 | 76.5 | 8 | 20 | 2.5 | 103 | Ø20 | 17 | M5 | M17×1 |
| JFR30-95 | 30 | 25 | 12 | 111 | 11 | 29 | 4 | 148 | Ø30 | 27 | G1/8 | M27×1 |
| JFR20-95L | 20 | 40 | 9 | 76.5 | 8 | 42.5 | 2.5 | 125.5 | Ø20 | 17 | M5 | M17×1 |

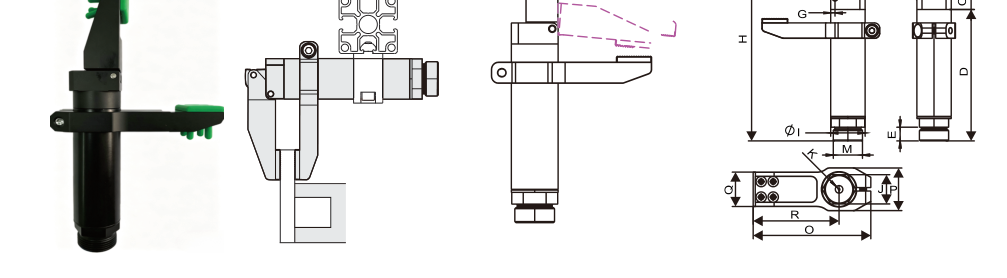

JFR20-95LG dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JFR20-95LG | 20 | 40 | 9 | 76.5 | 8 | 42.5 | 2.5 | 125.5 | Ø20 | 17 | M5 | 2.5 | M17×1 | 15 | 68.5 | 25 | 20 | 50 |

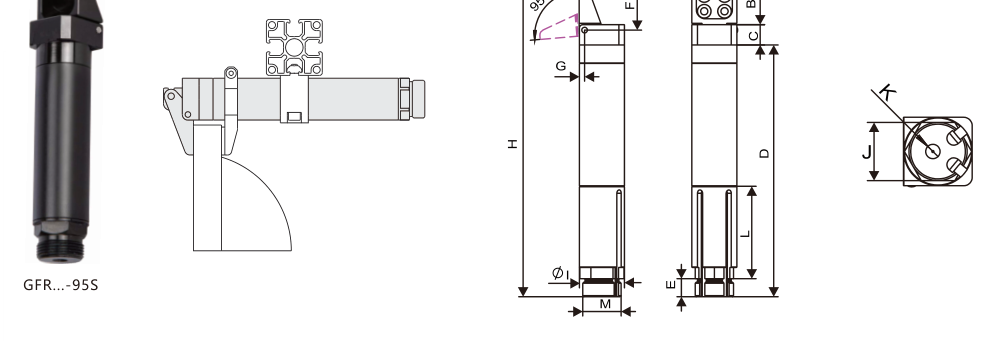

JFR20-95S dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JFR20-95S | 20 | 17.5 | 9 | 111.5 | 8 | 20 | 2.3 | 138 | Ø20 | 17 | M5 | 41 | M17×1 |

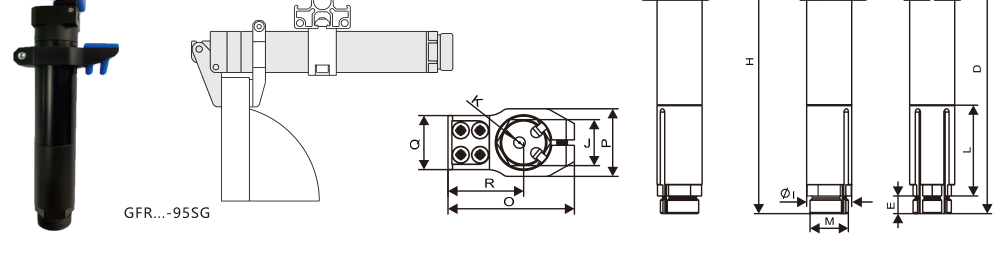

JFR20-95SG dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JFR20-95SG | 20 | 17.5 | 9 | 111.5 | 8 | 20 | 2.3 | 138 | Ø20 | 17 | M5 | 41 | M17×1 | 15 | 46 | 25 | 20 | 27.5 | 2.5 |

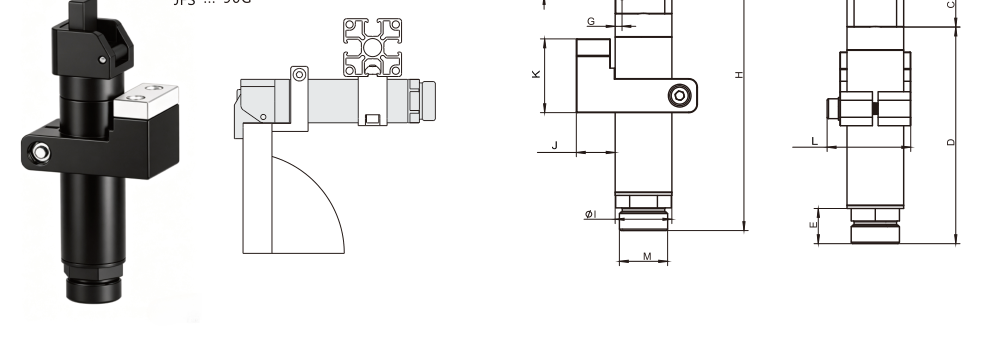

JFS-G dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JFS14-90G | 8 | 6.7 | 10.5 | 49.5 | 5.5 | 6 | 2 | 66.8 | Ø14 | 9 | 12 | 4 |
| JFS20-90G | 11 | 8.7 | 15.5 | 76.4 | 8 | 17.7 | 2.4 | 100.6 | Ø20 | 13.7 | 26 | 5 |
| JFS30-90G | 14 | 13.7 | 23.5 | 111 | 11 | 29.2 | 4 | 139.2 | Ø30 | 23.7 | 26 | 6 |

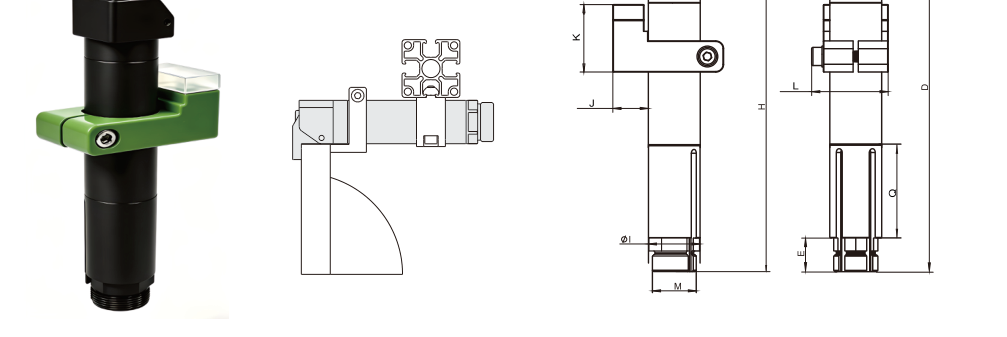

JFS-SG dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JFS20-90SG | 11 | 8.7 | 15.5 | 112 | 8 | 17.7 | 2.4 | 136.2 | Ø20 | 13.7 | 26 | 29.5 | M17×1 | 12.37 | 5 | 15.2 | 36 |
| JFS30-90SG | 14 | 13.7 | 23.5 | 147 | 11 | 29.2 | 4 | 184.2 | Ø30 | 23.7 | 26 | 66 | M27×1 | 20 | 6 | 25.2 | 49 |

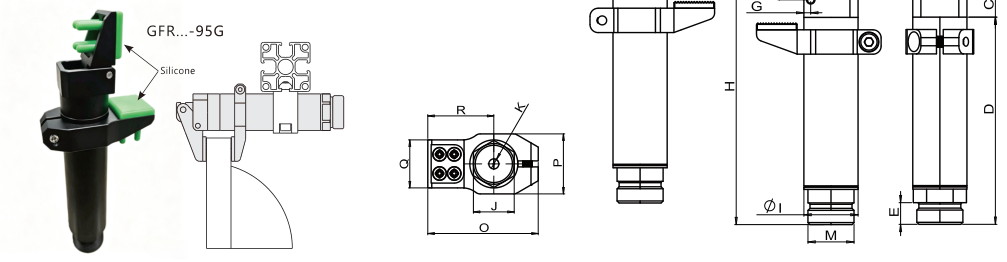

Silicone pads
| Model | Applicable models |
|---|---|
| SIL-14G | JFR14-95 |
| SIL-20G | JFR20-95 / JFR20-95EG / JFR20-95LG / JFR20-95SG |
| SIL-30G | JFR30-95 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Enlarge drawing ↗JF · Dimensions
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
Read the selection guide ↗
