SYNS3-1000 / 1200 / 1400 CNC full servo injection molding robot
2-stage take-out robot for 200–550-ton horizontal injection molding machines. ±0.1 mm repeatability; compare strokes, payloads and cycle times by model.

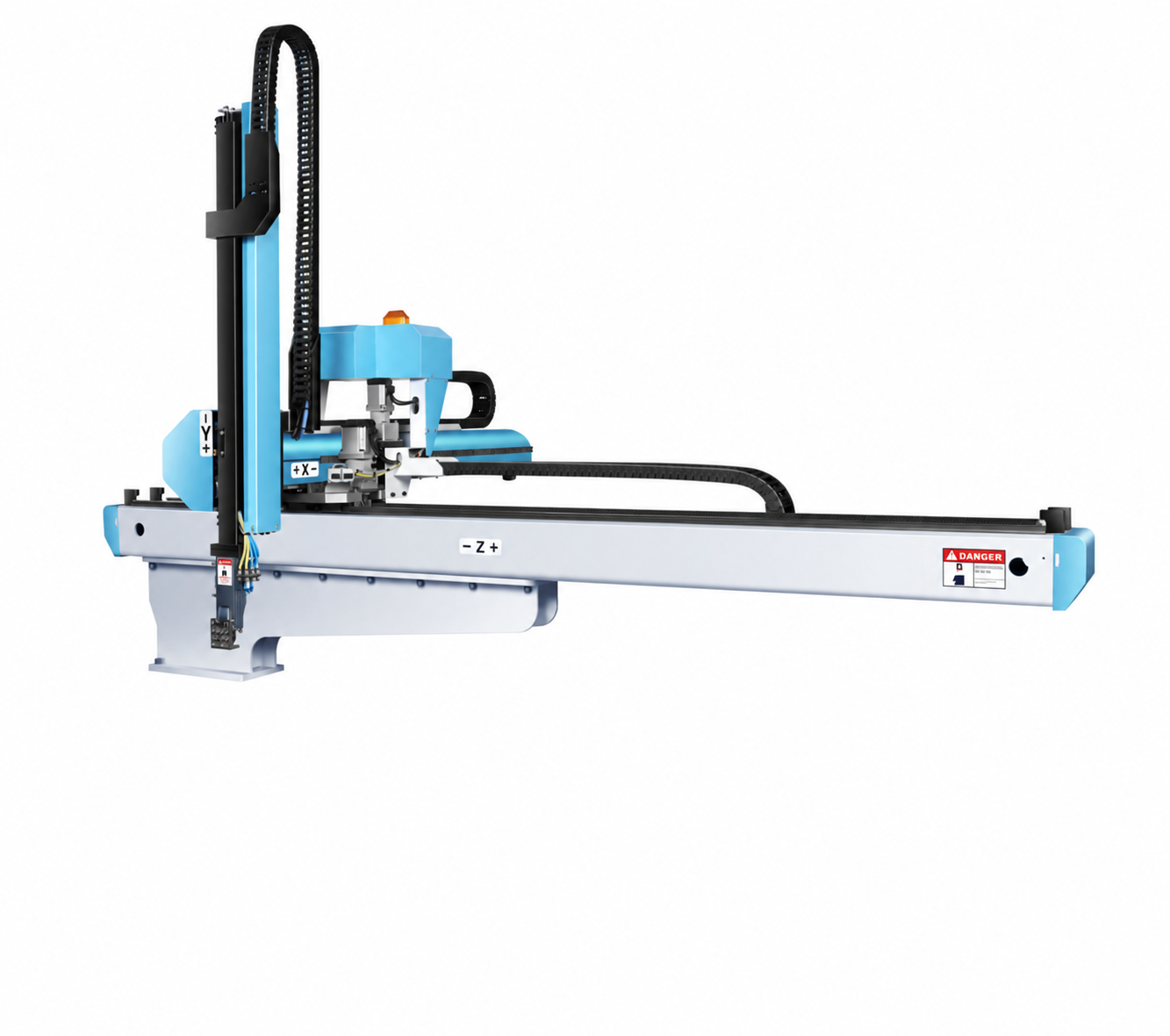

Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Drive, structure and applications
3-axis AC servo configurations drive vertical, crosswise and traverse motion with high-response motors. Precision planetary gear reduction supports ±0.1 mm repeatability. Motion programs can be adjusted to the application.
Designed for rapid part removal, insert placement and more complex automation.
The 2-stage vertical arm is driven by an AC servo motor. Precision linear guides provide wear resistance and long service life. A high-rigidity aluminum-alloy beam supports fast motion with low vibration.
Ram-type crosswise structure. Traverse and crosswise motion use rack and pinion; vertical arm motion uses a belt drive. Linear guides throughout the machine require no clearance adjustment and provide stable, wear-resistant motion with high positioning accuracy.
Technical specifications
Model specifications
| Parameter | SYNS3-1000 | SYNS3-1200 | SYNS3-1400 |
|---|---|---|---|
| Power capacity (kVA) | 2.9 | 2.9 | 3.2 |
| Recommended machine (ton) | 200–320 | 250–380 | 250–550 |
| Traverse stroke (mm) | 1500 | 1900 | 2200 |
| Crosswise stroke (mm) | 1240 | 1320 | 1480 |
| Vertical stroke (mm) | 800 | 800 | 1050 |
| Maximum load (kg) | 12 | 10 | 8 |
| Dry take-out time (s) | 1.2 | 1.3 | 1.3 |
| Dry cycle time (s) | 10 | 12 | 15 |
| Air consumption (Nl/cycle) | 28 | 30 | 32 |
| Net weight (kg) | 350 | 380 | 450 |
Select by the exact model. Payload, stroke, machine tonnage and timing vary with configuration.
Installation dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | N | O | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SYNS3-1000 | 1390 | 1230 | 490 | 950 | 520 | — | — | 240 | 210 | 200 | 300 | 2100 | 1500 | 350 | 150 |
| SYNS3-1200 | 1470 | 1300 | 420 | 950 | 520 | — | — | 240 | 210 | 200 | 300 | 2460 | 1900 | 350 | 150 |
| SYNS3-1400 | 1530 | 1380 | 420 | 1150 | 520 | — | — | 190 | 160 | 200 | 300 | 2680 | 2200 | 350 | 150 |
Dimension letters correspond to the drawing below. A dash indicates an unspecified dimension.
Series performance indicators
| Indicator | Series value |
|---|---|
| Machine range (ton) | 200–550 |
| Load indicator (kg) | 4 |
| Repeatability | ±0.1 mm |
| Minimum take-out time (s) | 1.2 |
| Cycle time (s) | 11 |
Series indicators describe the family and do not replace the model-specific limits above. Confirm the required operating conditions when requesting a quotation.
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

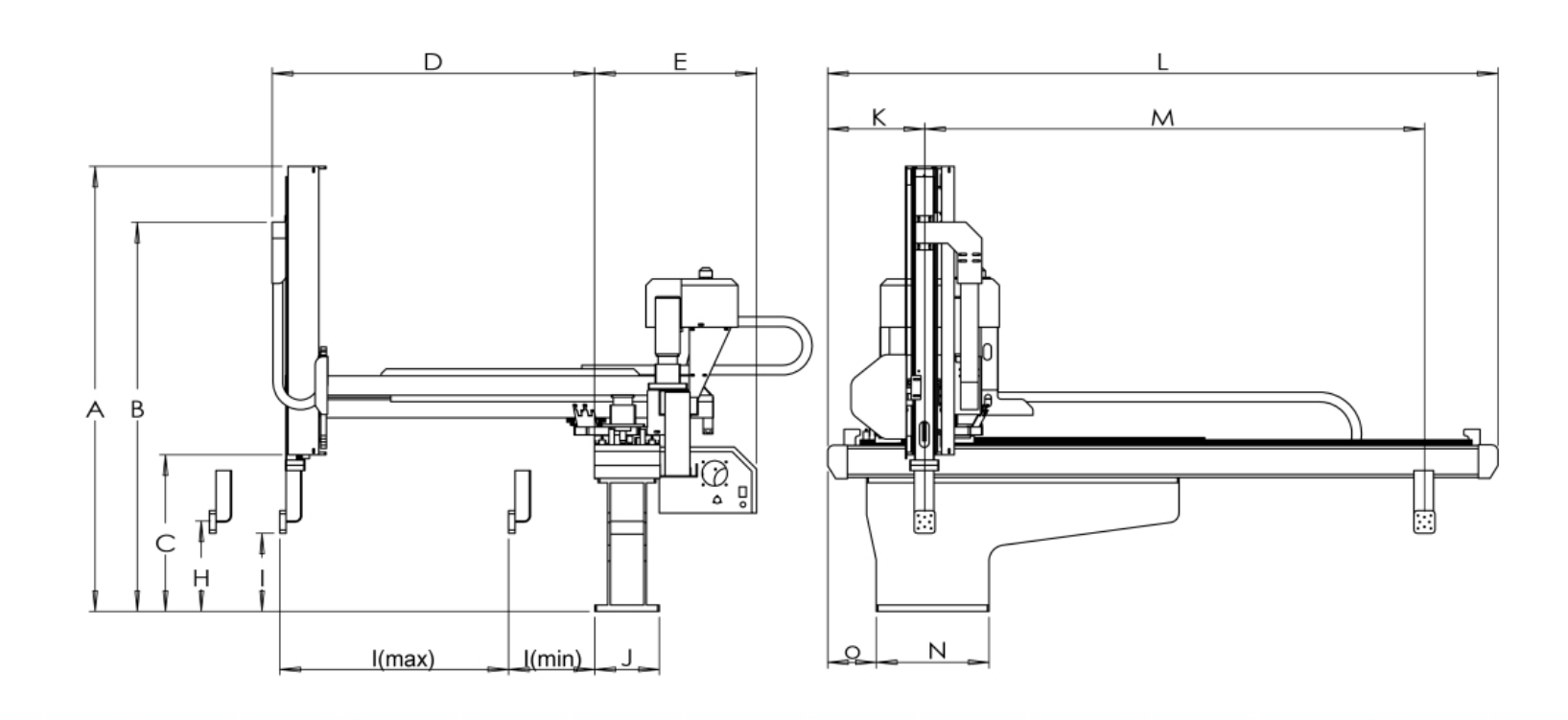

Enlarge drawing ↗SYNS3-1000 / 1200 / 1400 installation drawing
Application details for your quotation
Match the molding machine tonnage, mold opening and available headroom first. Then check payload including the gripper and workpiece, all three strokes, dry cycle time, mounting dimensions and air consumption. SYC2-1300 is for vertical thermoforming presses; other families serve horizontal injection molding machines.
