Sprue grippers for injection molding
JSR / JSRT Buffer supports
JSR / JSRT buffer supports. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Dimensions (mm)
| Model | A | B | C | D | E | F | H | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| JSR1421-08 | 8 | 14 | 15 | 12.5 | 40 | 36.75 | 97.75 | 21 | 36 |
| JSR1436-10 | 10 | 14 | 20 | 15 | 60 | 45.5 | 139 | 36.5 | 54 |
| JSR2026-10 | 10 | 20 | 20 | 15 | 50 | 45.5 | 121.5 | 26 | 74 |
| JSR2026-12 | 12 | 20 | 20 | 15 | 50 | 45.5 | 121.5 | 26 | 73 |
| JSR2051-10 | 10 | 20 | 20 | 15 | 84 | 45.5 | 180.5 | 51 | 111 |
| JSR2051-12 | 12 | 20 | 20 | 15 | 84 | 45.5 | 180.5 | 51 | 110 |
Dimensions (mm)
| Model | A | B | C | D | E | F | H | I | J | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JSRT1421-08 | 8 | M14 | 15 | 12.5 | 40 | 36.75 | 97.75 | 29 | 2.7 | 21 | 43 |
| JSRT2026-10 | 10 | M20 | 20 | 15 | 50 | 45.5 | 121.5 | 39 | 3.9 | 26 | 92 |
| JSRT2026-12 | 12 | M20 | 20 | 15 | 50 | 45.5 | 121.5 | 39 | 3.9 | 26 | 91 |
| JSRT2051-10 | 10 | M20 | 20 | 15 | 84 | 45.5 | 180.5 | 39 | 3.9 | 51 | 129 |
| JSRT2051-12 | 12 | M20 | 20 | 15 | 84 | 45.5 | 180.5 | 39 | 3.9 | 51 | 128 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

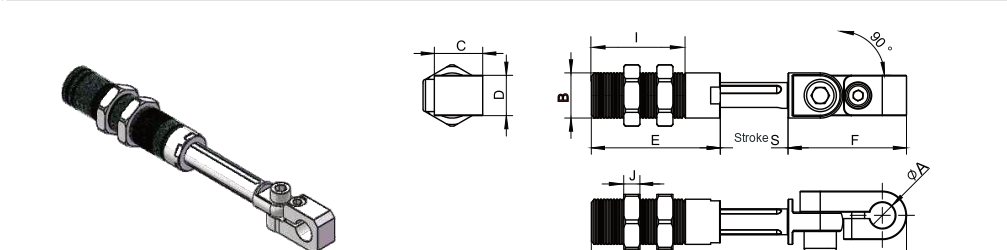

Enlarge drawing ↗JSR / JSRT · Dimensions
Enlarge drawing ↗JSR / JSRT · Dimensions

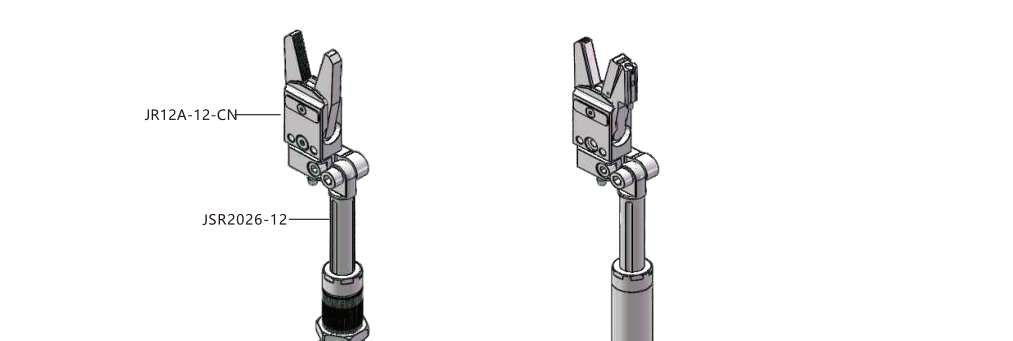

Enlarge drawing ↗Assembly and application
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
