Robot tool changers
MQC-200 Manual quick changer
Tooling connection for higher payload requirements.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Product parameters
| Parameter | Value |
|---|---|
| Model | MQC-200 |
| Medium | Filtered compressed air |
| Pressure range | 5–6 bar |
| Temperature range | 5–60 °C |
| Robot-side quick changer | QC-R200K |
| Robot-side weight | 2640 g |
| Gripper-side quick changer | QC-G200 |
| Gripper-side weight | 1890 g |
| Vertical pulling force F | 2000 N |
| Rotating torque Mt | 600 N·m |
| Reversal torque Mb | 300 N·m |
| Recommended payload | 75 kg |
| Precision (unit to confirm) | ±0.05 |
| Colour | Black |
| Straight air ports: quantity × size | 12 × G1/4 |
Configuration values to confirm
| Field | Listed configuration | Alternative configuration |
|---|---|---|
| Vertical pulling force F | 2000 N | 9000 N |
| Robot-side model code | QC-R200K | MQC-R200K |
| Gripper-side model code | QC-G200 | MQC-G200 |
Pulling-force and ordering-code variants require confirmation before selection.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

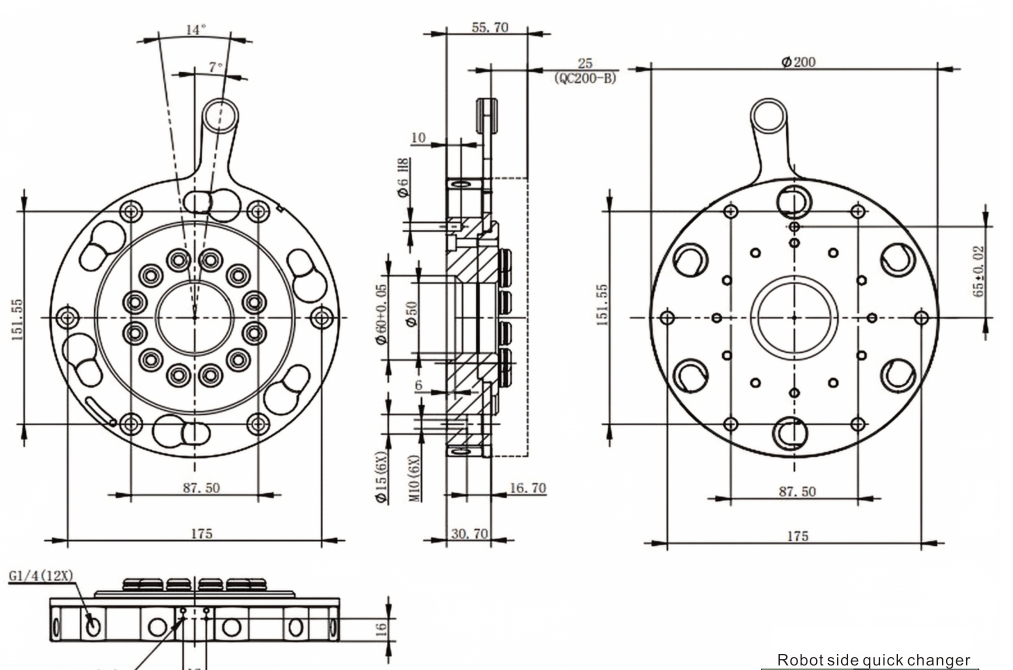

Enlarge drawing ↗Robot-side dimensions

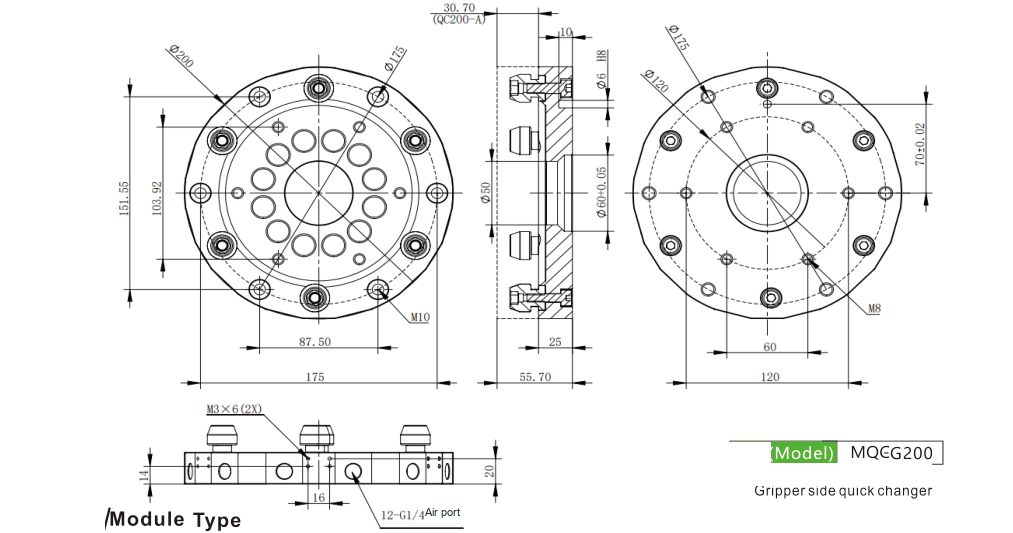

Enlarge drawing ↗Tool-side dimensions

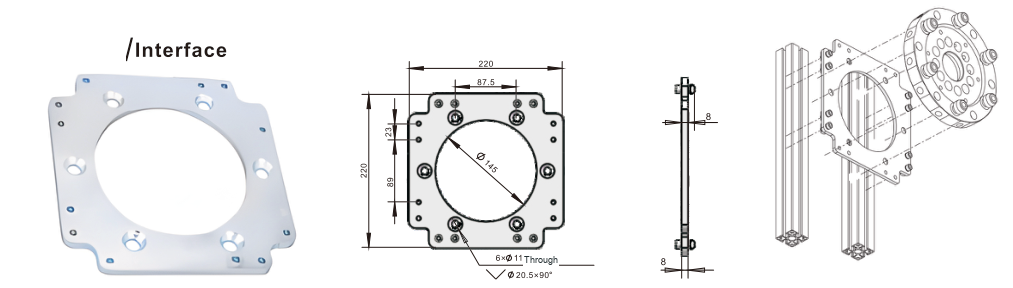

Enlarge drawing ↗Storage fixture and adapter dimensions

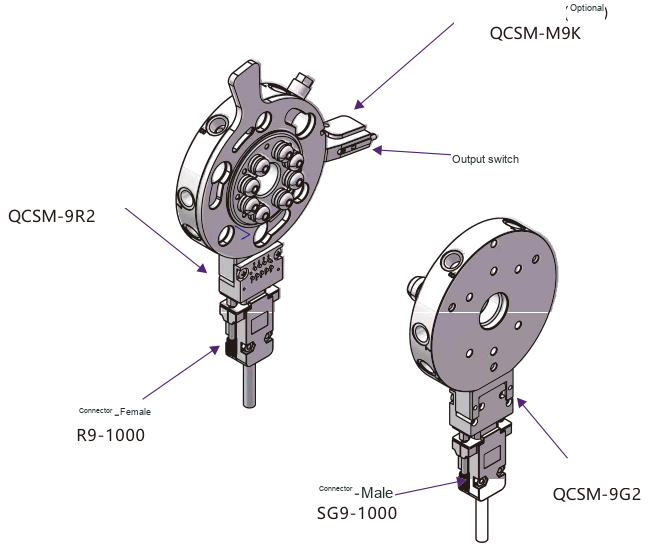

Enlarge drawing ↗MQC accessory installation

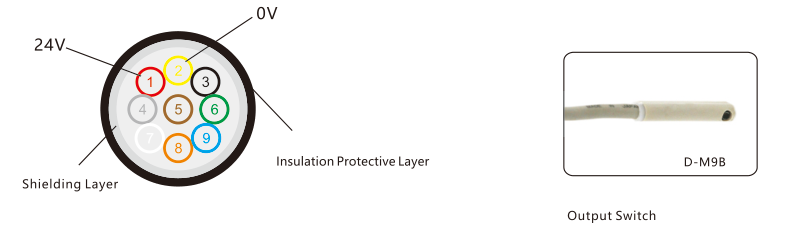

Enlarge drawing ↗Signal cable section and output switch

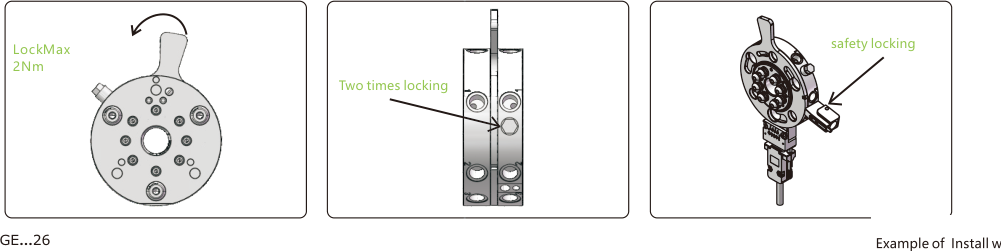

Enlarge drawing ↗Manual locking and installation
Application details for your quotation
Start with the complete tooling and workpiece load, then confirm mounting dimensions, moment capacity and pneumatic connections. Confirm the applicable pulling force and ordering code for your configuration.
Read the selection guide ↗
