JQL15-Y L-type manual tool changers
JQL15-Y l-type manual tool changers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Model specifications
| Model | Installation side | Material | Payload | Weight |
|---|---|---|---|---|
| JQL15R-Y | Robot | High-strength aluminum | 15 kg | 185 g |
| JQL15G-Y | Tool | Steel | 15 kg | 294 g |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

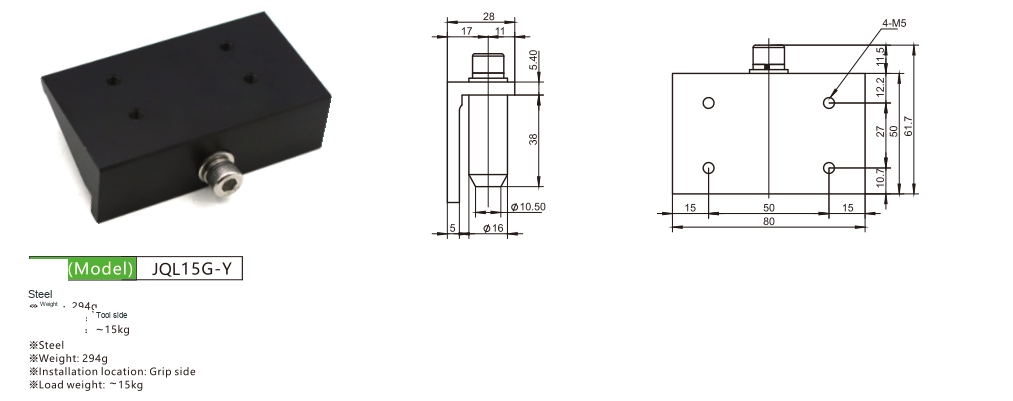

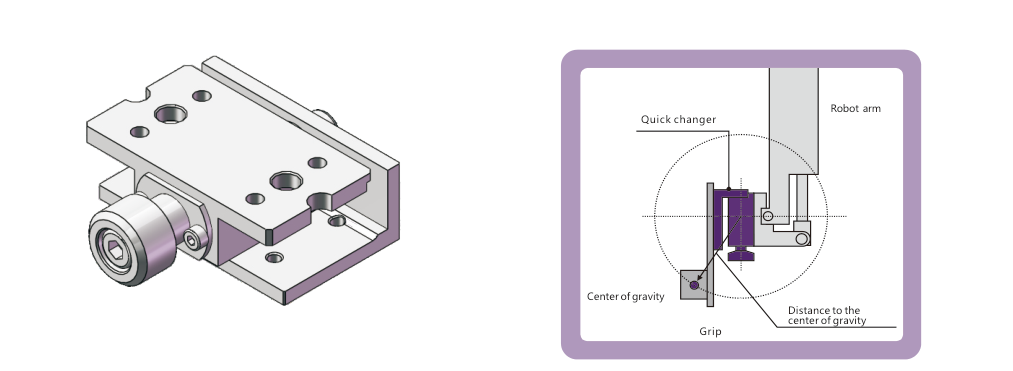

Enlarge drawing ↗JQL15-Y · Dimensions
Enlarge drawing ↗JQL15-Y · Dimensions
Enlarge drawing ↗JQL15-Y · Dimensions
Application details for your quotation
Start with the complete tooling and workpiece load, then confirm mounting dimensions, moment capacity and pneumatic connections. Confirm the applicable pulling force and ordering code for your configuration.
Read the selection guide ↗
