GTC-001 / GTC-002 Temperature regulators and heaters

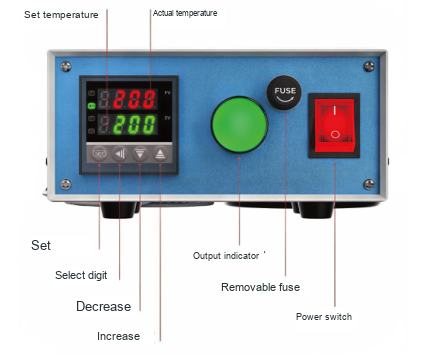

GTC-001 and GTC-002 temperature controllers with 0–200 °C control range, K-type thermocouple input and 100–240 VAC supply.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Temperature controller specifications
| Parameter | GTC-001 | GTC-002 |
|---|---|---|
| Temperature range | 0–200 °C | 0–200 °C |
| Thermocouple | K | K |
| Power supply | 100–240 VAC | 100–240 VAC |
| Ambient / storage temperature | 0–50 °C / 10–65 °C | 0–50 °C / 10–65 °C |
| Built-in fuse | 1 × 15 A | 1 × 15 A |
| Weight (g) | 1268 | 1820 |
Avoid icing and condensation.
Heater and thermocouple
| Component | Specification |
|---|---|
| Heating tube | D6-L55; Ø6 × 55 mm; 220 V / 100 W; 1.5 m |
| Thermocouple | K; 1.5 m |
| TC+ wire | Red |
| TC− wire | Blue |
| Heater wires | Beige / beige |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JNT-01 · Dimensions
Enlarge drawing ↗Connection and installation details
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
