Pneumatic air nippers & sprue cutters
GT-NT Vertical slide air nippers
GT-NT vertical slide air nippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
GT-NT — performance
| Model | Soft plastic Ø (mm) | Hard plastic Ø (mm) | Copper Ø (mm) | Steel Ø (mm) | Air per stroke (cm³) | Weight (g) | Pressure (MPa) | Slide | Travel (mm) | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|
| GT-NT03 | 1.5 | 1 | — | — | 27 | 178 | 0.4–0.5 | Pull | 0–3 | Hose nipple: ID 2.5 mm |
| GT-NT03R | 1.5 | 1 | — | — | 27 | 178 | 0.4–0.5 | Push | 0–3 | Hose nipple: ID 2.5 mm |
| GT-NT03-4 | 1.5 | 1 | — | — | 27 | 178 | 0.4–0.5 | Pull | 0–3 | Tube fitting: ID 2.5 / OD 4 mm |
| GT-NT03R-4 | 1.5 | 1 | — | — | 27 | 178 | 0.4–0.5 | Push | 0–3 | Tube fitting: ID 2.5 / OD 4 mm |
| GT-NT05 | 2.5 | 1.5 | — | — | 47 | 325 | 0.4–0.5 | Pull | 0–3 | Hose nipple: ID 2.5 mm |
| GT-NT05R | 2.5 | 1.5 | — | — | 47 | 325 | 0.4–0.5 | Push | 0–3 | Hose nipple: ID 2.5 mm |
| GT-NT05-4 | 2.5 | 1.5 | — | — | 47 | 325 | 0.4–0.5 | Pull | 0–3 | Tube fitting: ID 2.5 / OD 4 mm |
| GT-NT05R-4 | 2.5 | 1.5 | — | — | 47 | 325 | 0.4–0.5 | Push | 0–3 | Tube fitting: ID 2.5 / OD 4 mm |
| GT-NT10 | 3.5 | 2.3 | — | — | 82 | 515 | 0.4–0.5 | Pull | 0–3 | Hose nipple: ID 2.5 mm |
| GT-NT10R | 3.5 | 2.3 | — | — | 82 | 515 | 0.4–0.5 | Push | 0–3 | Hose nipple: ID 2.5 mm |
| GT-NT10-6 | 3.5 | 2.3 | — | — | 82 | 515 | 0.4–0.5 | Pull | 0–3 | Tube fitting: ID 4 / OD 6 mm |
| GT-NT10R-6 | 3.5 | 2.3 | — | — | 82 | 515 | 0.4–0.5 | Push | 0–3 | Tube fitting: ID 4 / OD 6 mm |
| GT-NT20 | 5 | 3.4 | — | — | 203 | 930 | 0.4–0.5 | Pull | 0–8 | Hose nipple: ID 4 mm |
| GT-NT20R | 5 | 3.4 | — | — | 203 | 930 | 0.4–0.5 | Push | 0–8 | Hose nipple: ID 4 mm |
| GT-NT20-6 | 5 | 3.4 | — | — | 203 | 930 | 0.4–0.5 | Pull | 0–8 | Tube fitting: ID 4 / OD 6 mm |
| GT-NT20R-6 | 5 | 3.4 | — | — | 203 | 930 | 0.4–0.5 | Push | 0–8 | Tube fitting: ID 4 / OD 6 mm |
GT-NT — dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GT-NT03 | 8 | 62 | 7 | 43 | 14 | 19 | 68.1 | 1.5–3 | M3 | 2 | 5 |
| GT-NT05 | 9 | 64 | 7 | 45 | 20 | 32 | 71.1 | 3–6 | M4 | 2 | 5 |
| GT-NT10 | 11 | 73 | 8 | 53 | 24 | 38 | 88.1 | 4–7 | M4 | 2 | 5 |
| GT-NT20 | 14 | 103 | 10 | 80 | 28 | 44 | 102.1 | 4.5–9 | M5 | 2 | 6 |
Blade dimensions refer to the standard AJ blade. Blades are ordered separately.

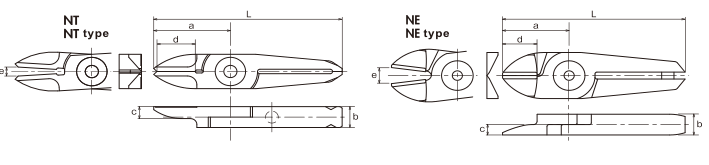

NT straight AJ / AJH / AJB — dimensions
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NT03AJ | 24 | 7 | 4 | 11 | 3 | 59 | 20 | Special alloy steel | GT-NT03 |
| NT05AJ | 29 | 7 | 5 | 15 | 6 | 65 | 30 | Special alloy steel | GT-NT05 |
| NT05AJH | 29 | 7 | 5 | 15 | 6 | 65 | 30 | High-speed steel | GT-NT05 |
| NT05AJB | 29 | 7 | 5 | 15 | 6 | 65 | 30 | Sintered alloy | GT-NT05 |
| NE5AJ | 24 | 7 | 3.5 | 12 | 6 | 60 | 35 | Special alloy steel | GT-NT05 |
| NT10AJ | 35 | 9 | 6 | 17 | 7 | 82 | 62 | Special alloy steel | GT-NT10 |
| NT10AJH | 35 | 9 | 6 | 17 | 7 | 82 | 76 | High-speed steel | GT-NT10 |
| NT10AJB | 35 | 9 | 6 | 17 | 7 | 82 | 76 | Sintered alloy | GT-NT10 |
| NE10AJ | 27 | 9 | 4.5 | 12 | 7 | 74 | 70 | Special alloy steel | GT-NT10 |
| NT20AJ | 40 | 12 | 6 | 20 | 9 | 97 | 120 | Special alloy steel | GT-NT20 |
| NT20AJH | 40 | 12 | 6 | 20 | 9 | 97 | 120 | High-speed steel | GT-NT20 |
| NT20AJB | 40 | 12 | 6 | 20 | 9 | 97 | 120 | Sintered alloy | GT-NT20 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗GT-NT · Dimensions
Enlarge drawing ↗GT-NT · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
Read the selection guide ↗
