JB8M8-D2 8-port M8 junction boxes
8-port M8 junction box with PNP/NPN variants, IP67 protection, 10–30 VDC supply and LED indication.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Electrical and mechanical specifications
| Parameter | Value |
|---|---|
| Housing | Black nylon |
| Coupling nut | Nickel-plated brass |
| Contact carrier | Black TPU |
| Contacts | Gold-plated brass |
| Protection rating | IP67 |
| Operating voltage | 10–30 VDC |
| Current per port | 2 A |
| Total current | 6 A |
| LED current | 10 mA |
| Operating temperature | −30 to +80 °C |
| M8 ports | 8 |
| Signals per port | 1 |
| Signal indication | LED |
| Overall dimensions | 126 × 30 × 24.5 mm |
| Main connection | 2 m PVC |
| Mounting holes | 2 × Ø3.5 mm |
| Cable length | 2 m; custom lengths available |
| Cable jacket | Black PVC |
Available models
| Model | Output type | Weight |
|---|---|---|
| JB8M8-3P-D2 | PNP | 300 g |
| JB8M8-3N-D2 | NPN | 300 g |
Compatible connectors
| Model | Configuration |
|---|---|
| JM8-M03T | 3-pin M8 straight field-wireable connector |
| JM8-M03L | 3-pin M8 angled field-wireable connector |
Pin and wire assignments
| Pin | Code | Wire color |
|---|---|---|
| 1 | WH | White |
| 2 | GN | Green |
| 3 | YE | Yellow |
| 4 | GY | Gray |
| 5 | PK | Pink |
| 6 | RD | Red |
| 7 | BK | Black |
| 8 | VT | Violet |
| 9 | BN | Brown |
| 10 | BU | Blue |
| 11 | RD/BU | Red/blue |
| 12 | GY/BN | Gray/brown |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JB8M8-D2 · Dimensions

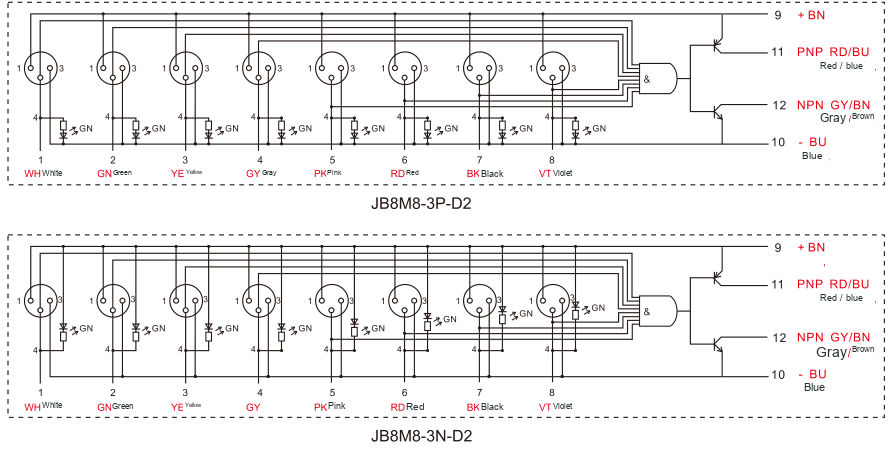

Enlarge drawing ↗Connection and installation details

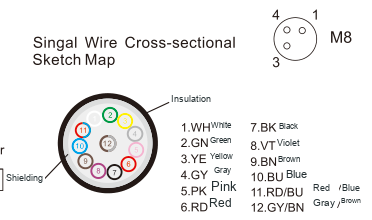

Enlarge drawing ↗Connection and installation details
