EOAT signal boxes & I/O accessories
BSC-8A-B Signal boxes
Signal connections for your tooling components.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Enclosure & connections
| Parameter | Value |
|---|---|
| Model | BSC-8A-B |
| Overall dimensions | 124 × 84 × 58 mm |
| Mounting hole spacing | 82 × 42 mm |
| Mounting holes | 4 × Ø5.2 mm |
| Power input | 24 V DC |
| Input groups | 8 |
| Output types | NPN / PNP / NC / NO |
Electrical parameters
| Parameter | Minimum | Recommended | Maximum | Unit |
|---|---|---|---|---|
| Supply voltage | 20 | 24 | 28 | V |
| Effective input current | 5 | 7 | 10 | mA |
| Transistor output load | — | — | 100 | mA |
| Relay output capability (resistive load) | — | — | 0.5 A @ 125 V AC; 1 A @ 24 V DC | — |
| Maximum switching frequency | — | TBD | — | Hz |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

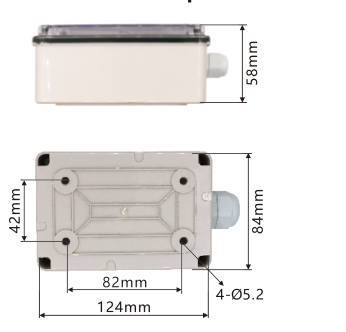

Enlarge drawing ↗Enclosure dimensions

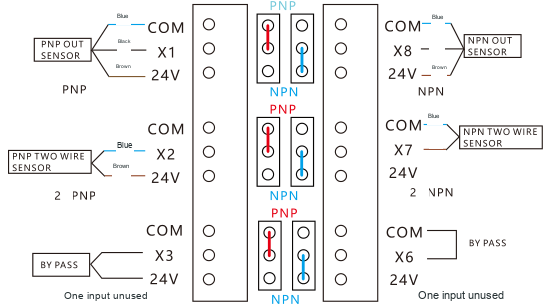

Enlarge drawing ↗Wiring diagram

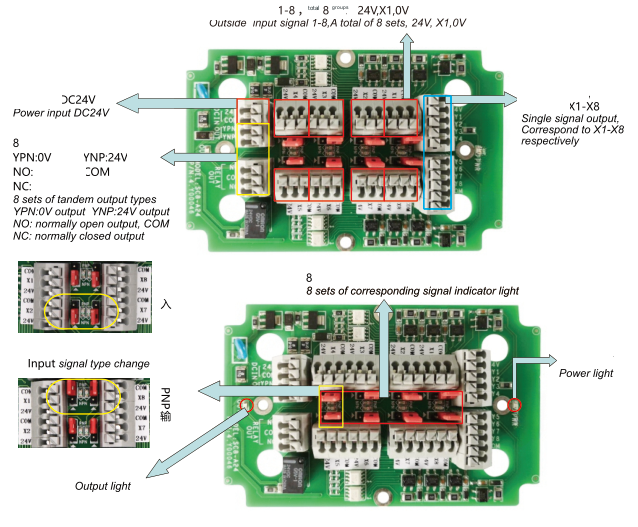

Enlarge drawing ↗Circuit board connections and indicators
Application details for your quotation
Match the sensor output type and supply voltage to the intended controller. Use the electrical limits in the table and confirm the final wiring configuration before integration.
Read the selection guide ↗
