JMBA SERIES Cross mounting brackets
Connect and position components within your frame.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications

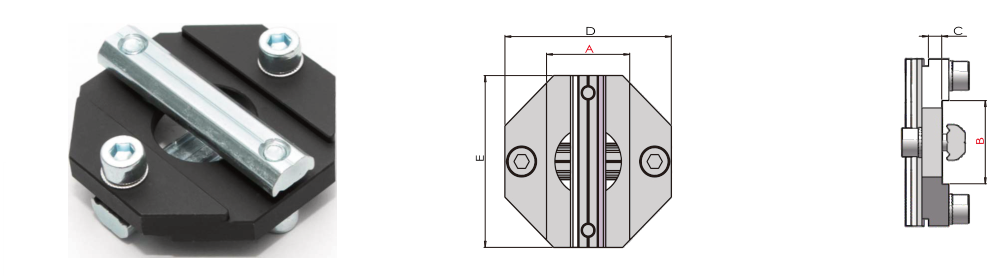

Cross mounting bracket dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| JMBA-1818 | 18 | 18 | 2 | 38 | 38 |
| JMBA-1825 | 18 | 25 | 4 | 38 | 45 |
| JMBA-2020 | 20 | 20 | 4 | 50 | 50 |
| JMBA-2525 | 25 | 25 | 4 | 50 | 50 |
| JMBA-3030 | 30 | 30 | 4 | 50 | 50 |
| JMBA-5050 | 50 | 50 | 4 | 70 | 70 |
| JMBA-2550 | 25 | 50 | 4 | 70 | 70 |
| JMBA-4040 | 40 | 40 | 4 | 60 | 60 |
| JMBA-8080 | 80 | 80 | 4 | 100 | 100 |
| JMBA-4080 | 40 | 80 | 4 | 60 | 100 |
| JMBA-2580 | 25 | 80 | 4 | 45 | 100 |
| JMBA-2540 | 25 | 40 | 4 | 45 | 60 |
| JMBA-3025 | 30 | 25 | 4 | 50 | 50 |
Profile compatibility
| Model | JEP-1818 | JEP-2510 | JEP-2518 | JEP-2525 | JEP-5025 | JEP-4040 | JEP-3030 |
|---|---|---|---|---|---|---|---|
| JMBA-1818 | ✓ | — | — | — | — | — | — |
| JMBA-1825 | ✓ | — | ✓ | ✓ | ✓ | — | — |
| JMBA-2020 | — | — | — | — | — | — | — |
| JMBA-2525 | — | ✓ | ✓ | ✓ | ✓ | — | — |
| JMBA-3030 | — | — | — | — | — | — | ✓ |
| JMBA-5050 | — | — | — | — | ✓ | — | — |
| JMBA-2550 | — | ✓ | ✓ | ✓ | ✓ | — | — |
| JMBA-4040 | — | — | — | — | — | ✓ | — |
| JMBA-8080 | — | — | — | — | — | — | — |
| JMBA-4080 | — | — | — | — | — | ✓ | — |
| JMBA-2580 | — | — | ✓ | ✓ | ✓ | — | — |
| JMBA-2540 | — | ✓ | ✓ | ✓ | ✓ | ✓ | — |
| JMBA-3025 | — | ✓ | — | — | — | — | — |
Unmarked combinations require compatibility confirmation.
Optional screw kit & weight
| Model | Screws | Single-hole shims | T-nuts | Total weight |
|---|---|---|---|---|
| JMBA-1818 | JTC-M5L12 × 4 | JTS-M5 × 4 | JTN-M5P28 × 2 | 46 g |
| JMBA-1825 | JTC-M5L14 × 4 | JTS-M5 × 4 | JTN-M5P28 × 1; PTN-M5P35 × 1 | 60 g |
| JMBA-2020 | JTC-M5L14 × 4 | JTS-M5 × 4 | JTN-M5P40 × 2 | 75 g |
| JMBA-2525 | JTC-M5L14 × 4 | JTS-M5 × 4 | JTN-M5P40 × 2 | 75 g |
| JMBA-3030 | JTC-M5L14 × 4 | JTS-M5 × 4 | JTN-M5P40 × 2 | 74 g |
| JMBA-5050 | JTC-M5L14 × 8 | JTS-M5 × 8 | JTN-M5P60 × 4 | 170 g |
| JMBA-2550 | JTC-M5L14 × 6 | JTS-M5 × 6 | JTN-M5P60 × 3 | 155 g |
| JMBA-4040 | JTC-M5L16 × 4 | JTS-M5 × 4 | JTN-M5P50 × 2 | 85 g |
| JMBA-8080 | JTC-M5L16 × 8 | JTS-M5 × 8 | JTN-M5P90 × 4 | 255 g |
| JMBA-4080 | JTC-M5L16 × 6 | JTS-M5 × 6 | JTN-M5P50 × 2; PTN-M5P90 × 1 | 175 g |
| JMBA-2580 | JTC-M5L14 × 2; M5L16 × 4 | JTS-M5 × 6 | JTN-M5P35 × 2; PTN-M5P90 × 1 | 140 g |
| JMBA-2540 | JTC-M5L14 × 2; M5L16 × 2 | JTS-M5 × 4 | JTN-M5P35 × 1; PTN-M5P50 × 1 | 48 g |
| JMBA-3025 | JTC-M5L14 × 4 | JTS-M5 × 4 | JTN-M5P40 × 2 | 47 g |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗Dimensions

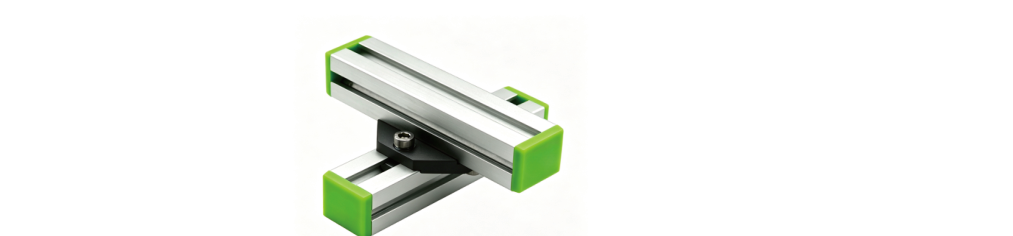

Enlarge drawing ↗Assembly and application
Application details for your quotation
Select the profile connection and shaft diameter together. Compare the dimension letters, mounting hardware and component weight for the proposed frame arrangement.
Read the selection guide ↗
