EOAT mounting brackets & clamp legs
JCA SERIES Clamp legs
Flexible positioning of tooling components.

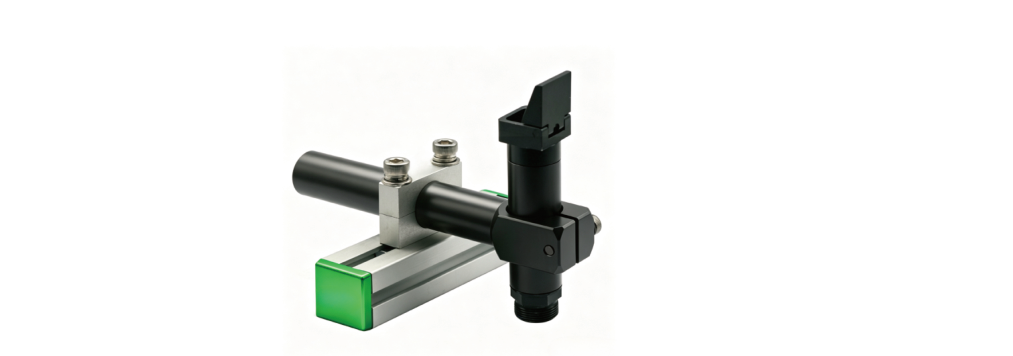

Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Clamp leg dimensions & weight
| Model | ØA (mm) | ØB (mm) | C (mm) | D (mm) | F (mm) | G (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| JCA1-1010L30 | 10 | 10 | 30 | 14 | 19 | 19 | 10 |
| JCA1-1010L60 | 10 | 10 | 60 | 14 | 19 | 19 | 15 |
| JCA1-1010L90 | 10 | 10 | 90 | 14 | 19 | 19 | 20 |
| JCA1-1212L30 | 12 | 12 | 30 | 19 | 21 | 21 | 13 |
| JCA1-1212L60 | 12 | 12 | 60 | 19 | 21 | 21 | 18 |
| JCA1-1212L90 | 12 | 12 | 90 | 19 | 21 | 21 | 23 |
| JCA1-1414L40 | 14 | 14 | 40 | 18 | 26 | 24 | 20 |
| JCA1-1414L80 | 14 | 14 | 80 | 18 | 26 | 24 | 30 |
| JCA1-1414L120 | 14 | 14 | 120 | 18 | 26 | 24 | 40 |
| JCA1-2020L50 | 20 | 20 | 50 | 25 | 32 | 31 | 45 |
| JCA1-2020L100 | 20 | 20 | 100 | 25 | 32 | 31 | 70 |
| JCA1-2020L150 | 20 | 20 | 150 | 25 | 32 | 31 | 105 |
| JCA1-3030L80 | 30 | 30 | 80 | 40 | 44 | 46 | 170 |
| JCA1-3030L140 | 30 | 30 | 140 | 40 | 44 | 46 | 230 |
| JCA1-3030L200 | 30 | 30 | 200 | 40 | 44 | 46 | 300 |
| JCA2-2020L50 | 20 | 20 | 50 | 25 | 32 | 31 | 65 |
| JCA2-2020L100 | 20 | 20 | 100 | 25 | 32 | 31 | 86 |
| JCA2-2020L150 | 20 | 20 | 150 | 25 | 32 | 31 | 101 |
| JCA2-3030L80 | 30 | 30 | 80 | 35 | 43 | 42 | 209 |
| JCA2-3030L140 | 30 | 30 | 140 | 35 | 43 | 42 | 288 |
| JCA2-3030L200 | 30 | 30 | 200 | 35 | 43 | 42 | 344 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

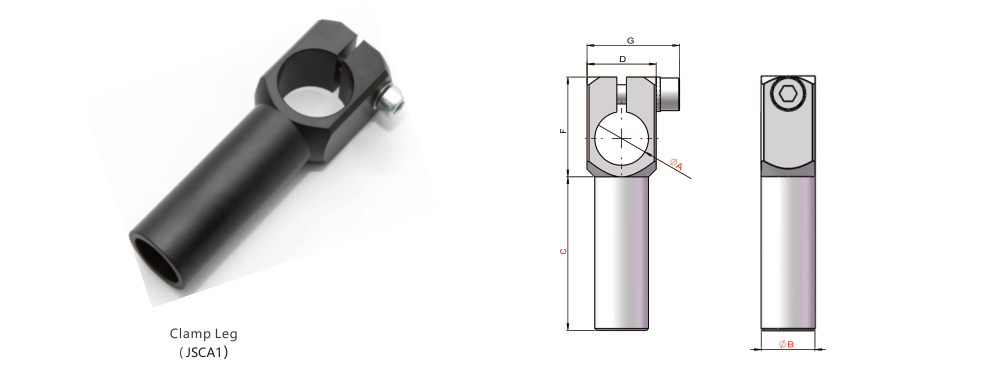

Enlarge drawing ↗Dimensions
Enlarge drawing ↗Assembly and application
Application details for your quotation
Select the profile connection and shaft diameter together. Compare the dimension letters, mounting hardware and component weight for the proposed frame arrangement.
